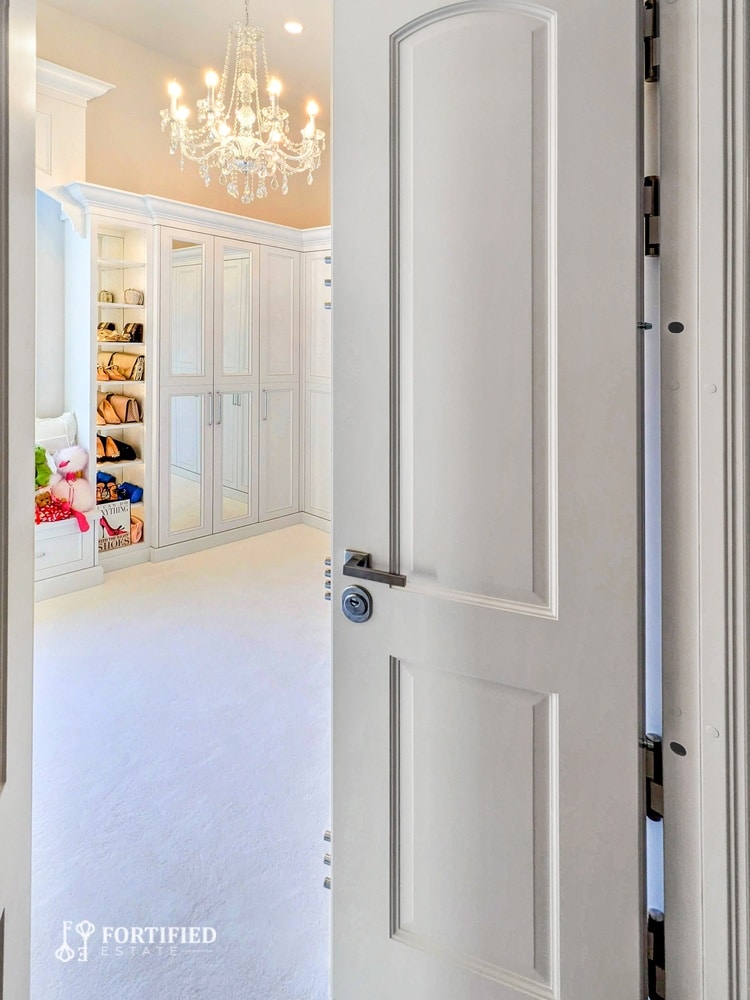

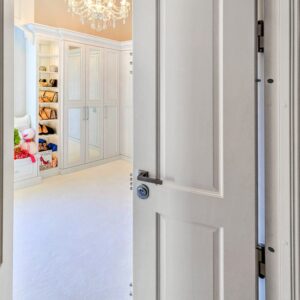

Elegant white panic room door with 10 steel bolts extended, leading to white walk in closet with purses and shoes.

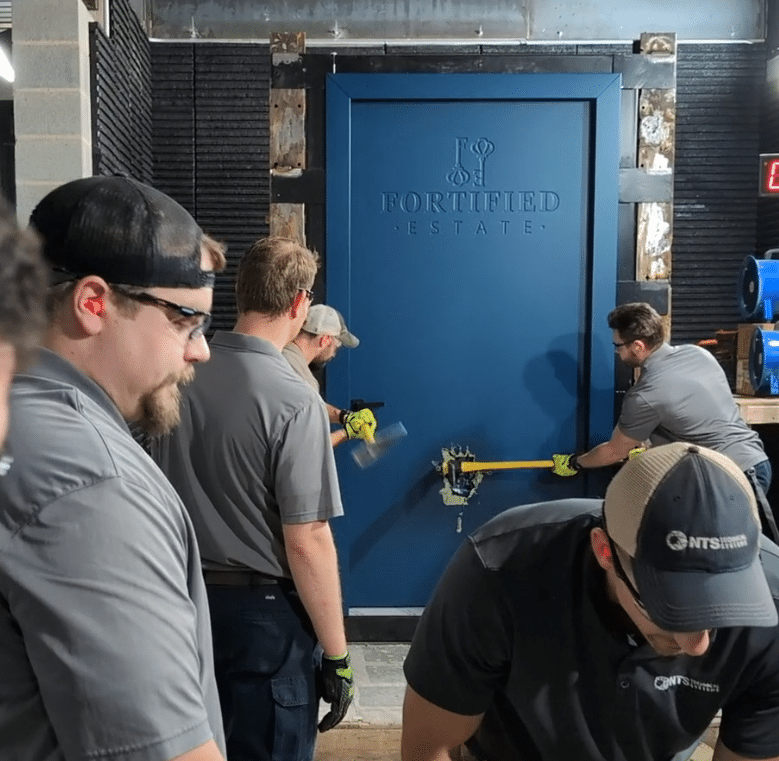

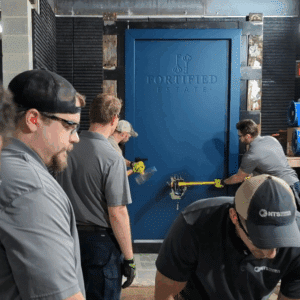

Testing Forced Entry Door
Vault Room Door
close up of fixed hinged side bolts on edge of door
Cross section of residential panic room door
milling options for vault doors
Elegant vault door with polished chrome hardware
Elegant white panic room door with 10 steel bolts extended, leading to white walk in closet with purses and shoes.
Testing Forced Entry Door
Vault Room Door
close up of fixed hinged side bolts on edge of door
Authoritative Testing Standards
UL Listed security certification H.P. White Laboratory ballistic testing ASTM International standards

  • Total

Background image

Unmatched Vault Door Security

Bullet Resistance

bullet resistance testing of steel gun room door

Your vault door can be upgraded to include ballistic steel infused in the door leaf and frame, designed for a UL 752 Level 3 (high powered handguns) or Level 8 (military rifles), stopping multiple rounds.

Attack Resistance

Forced Entry Testing

Your vault door model is tested to US Dept. of State SD-STD-01.01G Forced Entry resistance to sophisticated attacks. Multiple experts attack the door using powerful tools – the only residential vault door achieving this.

topography background

Product Overview:

green check icon

Everything included: from frame to handles, locks, hinges and more

green check icon

Custom Dimensions – fits your existing doorway

green check icon

Convenient Installation – pre-hung door is designed for houses and installs into wood or concrete rough opening

green check icon

Resists assault to rigorous US Dept of State ratings

green check icon

Bulletproofing Upgrade – to UL Level 3 (handguns) or UL Level 8 (rifles)

green check icon

Concealed Design – milled engineered wood matches other doors of your home, concealing security features. Discreet lock doesn’t attract attention.

USDS Logo

Vault doors tested to FE5/FE15 of US DoS SD-STD-01.01G forced entry standard

Background image

Security Features Include:

  • Multi-layered, lap welded, thick-gauge galvanized steel core
  • Three-dimensional lock cylinder with cylinder defender
  • Vault door interlocks with its L-shape frame to neutralize pry attacks
  • 12 active steel bolts provide complete vault-door locking
  • 2″ Rockwool provides thermal and sound insulation
  • 4-8 fixed hinge-side bolts render hinge attacks useless
  • Built-in armored shims encase 4″ lag bolts to secure frame to wall
  • Configurable for in-swing or out-swing – with equal security
wood clad vault door

How the process works

1. Place your order

Placing an order on this page (above) for our configurable vault doors is the fastest way to get on the production schedule.

If you need even more design options, instead start the process with our fully-custom vault door options

2. Review shop drawings

Before we manufacture your door you’ll receive detailed shop drawings for your modification or approval.

Also, at this point our product specialist will help you to finalize dimensions, door handles, hardware, color, and door handing.

3. Manufacture & Installation

In 8-10 weeks your personalized vault door is ready, and will begin shipment to your house.

The door ships pre-assembled so final installation can be done by a local contractor. Installation is similar to a standard residential door.

Shop Drawings

Prior to production, a full set of shop drawings are created for your review. During this phase we will also be in touch with you to finalize the details of your door, for example confirming the rough opening of your doorway.

We recommend having the contractor who will install the door also confirm the measurements of the rough opening. We can advise on what they need to measure.

Please see an example shop drawing below:

example installation drawings for panic room door

Installation

A contractor experienced with installing standard doors and windows generally has more than enough skills to install our doors as well. The door is pre-hung: hinges and lock installed, handle attached, etc.

However, our vault doors are very heavy. During installation make sure to have a few people to help move and hang the door. Carefully installing the frame level, square and plumb is most important.

A copy of our vault door installation details are below:

click for vault door installation instructions
cartographer background
Secure door project gallery

Our Doors Secure Clients Across North America

View Project Gallery

Or, for more custom options:

Choosing between the seven

Is this the right door for your opening?

This page covers the ready-to-order vault room door, built for vault rooms on a faster turnaround. The other six are built for different openings, at different prices and protection levels. The hub sets all seven side by side, with prices, both rating scales and lead times, so you can see which one fits your situation.

Compare all seven doors
